Previous Prototypes:

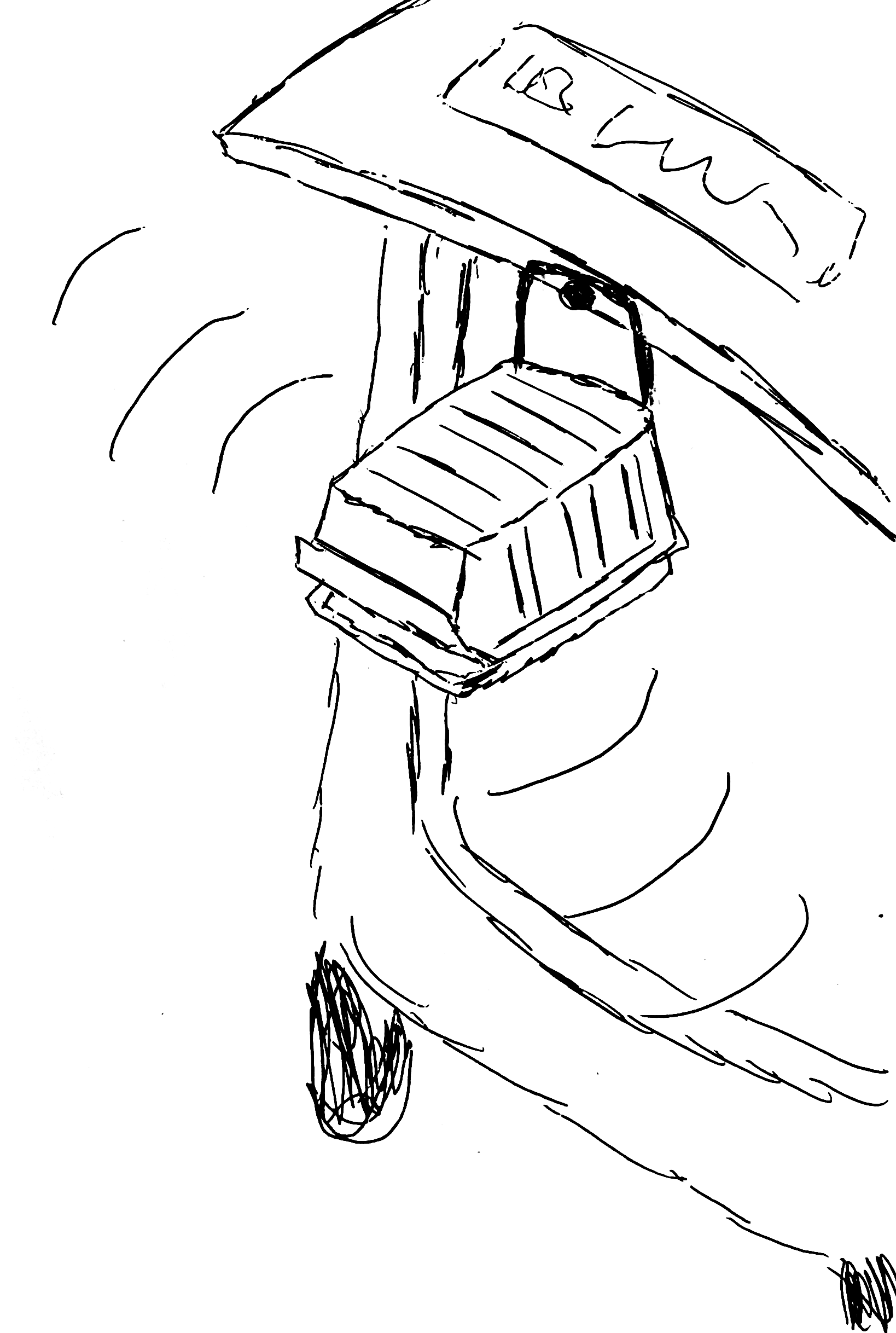

Sketch:

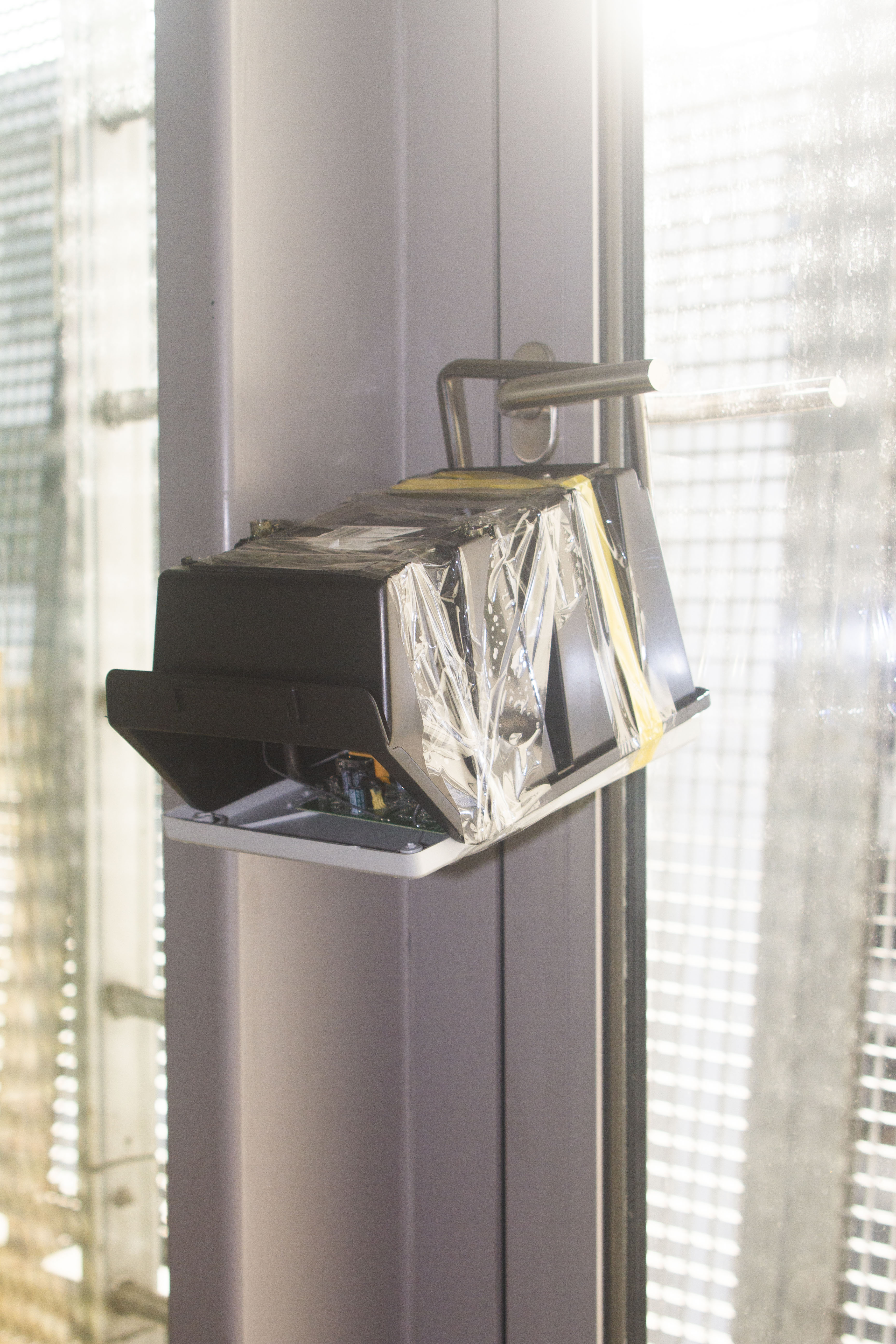

Name:
California Node.
Designed by:
Sasha Ricci Rovatti
Date:
17/03/26
Components / Materials:
Metal, tubes, plastic, tape.
Necessary Tools:
Drill, glue, scissors.
Estimated Time:
15 minutes.
Imagined Context:
California Van Wolswagen
Intention:
A node for a moving house/car.
Process:
——
Problems Encountered:
Drilling for the antennae.
Design Updates:
Updated 10/06/26 — Luca Marini. The structure was reinforced with bolts, replacing the previous tape fastening. The bottom cover was painted black to match the dark aesthetic of the upper component.
Technical Specifications:
Routing device: GL-iNet GL-AR300M16-Ext. Powered by a DIY USB power bank (1000mA output) with a Murata 18650 Li-ion cell (US18650VTC6, 3120 mAh, 30A).
Battery Life:
4-5 hours
〔↘〕 download as pdf
Name:
California Node.
Designed by:
Sasha Ricci Rovatti
Date:
17/03/26
Components / Materials:
Metal, tubes, plastic, tape.
Necessary Tools:
Drill, glue, scissors.
Estimated Time:
15 minutes.
Imagined Context:
California Van Wolswagen
Intention:
A node for a moving house/car.
Process:
——
Problems Encountered:
Drilling for the antennae.
Updates in the Design:
Updated on 10/06/26 by Luca Marini. To make the prototype more robust, bolts were implemented in the structure and the tape was removed. The bottom cover was painted black to match the dark design of the upper component.
Technical Specifications:
The routing device used in this model is a "GL-iNet GL-AR300M16-Ext" router. The routing device was connected to a "DIY USB Power Bank 1000mA" and used a "Murata 18650 Li-ion - 3120mAh - 30A - US18650VTC6" battery to function.
Battery Life:
4-5 hours
